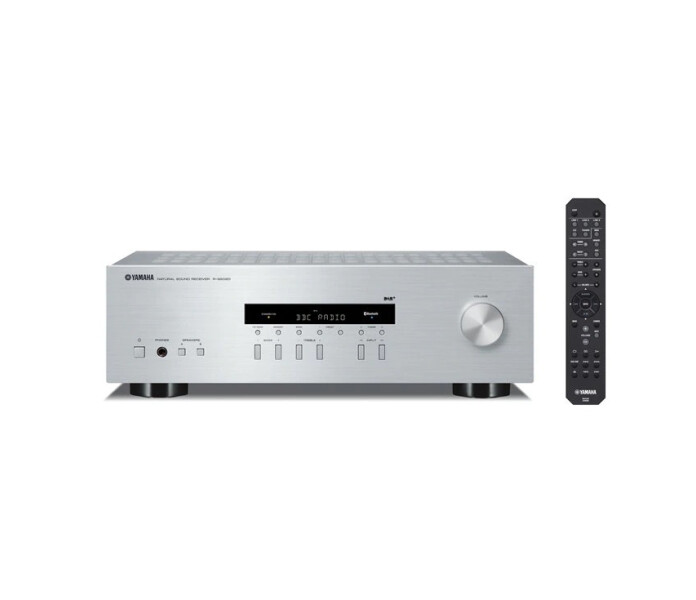

Yamaha R-S202D stereo receiver (silver)
Description
Hi-Fi Receiver featuring the outstanding sound quality and clean design that Yamaha is famous for. Provides Bluetooth® compatibility and a DAB/DAB+ tuner for enjoying digital broadcasts.
Yamaha high sound quality, created by rich experience and tradition, and high technological expertise
Bluetooth® compatible for wireless music streaming
DAB/DAB+ and FM tuners both have 40 station preset memories
Simple and sophisticated design

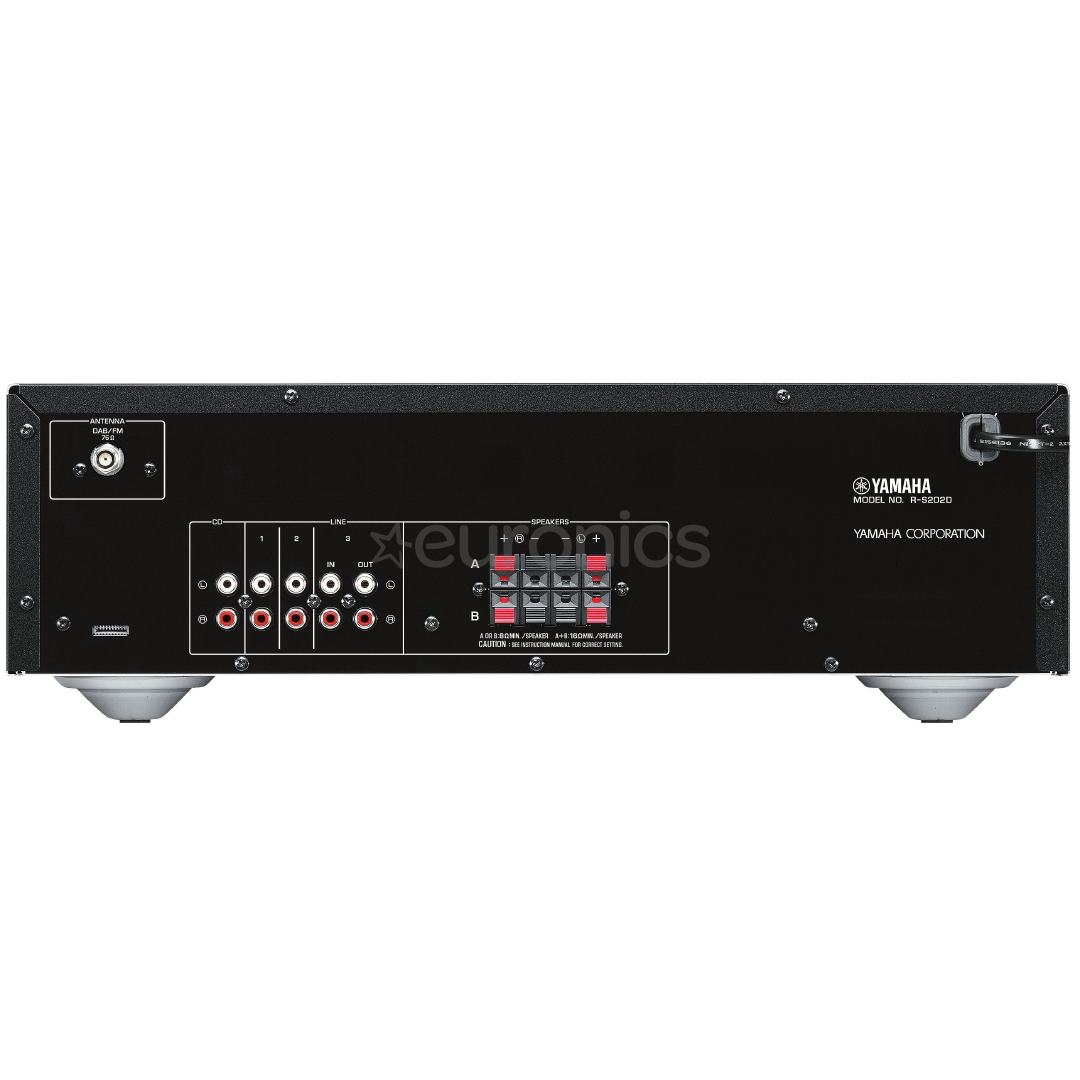

Speaker selector and speaker terminals for two systems
Auto power standby function
Simple design remote control
Head phone terminal
Specifications
Receiver / Integrated AmplifierNetwork sectionBluetoothMinimum RMS Output Power (8 ohms, 40Hz～20kHz)SpecificationsMaximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)High Dynamic Power/Channel (8/6/4/2 ohms)Frequency ResponseTotal Harmonic Distortion (8 ohms, 20 Hz-20 kHz)Signal-to-Noise Ratio (CD)Input Sensitivity (CD)FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono)FM Signal-to-Noise Ratio (Mono/Stereo)Standby Power ConsumptionDimensions (W x H x D)Weight
R-S202D
Receiver / Integrated Amplifier
Network sectionBluetoothYes (SBC / AAC)
Minimum RMS Output Power (8 ohms, 40Hz～20kHz)100 W + 100 W (0.2% THD)
Specifications
Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)115 W + 115 W
High Dynamic Power/Channel (8/6/4/2 ohms)125 W / 150 W / 165 W / 180 W
Frequency Response20Hz-20kHz (0+/-0.5db), 10Hz-100kHz (0+/-3.0db)
Total Harmonic Distortion (8 ohms, 20 Hz-20 kHz)0.025% (Phono (MM) to REC Out), 0.2% (CD to SP Out)
Signal-to-Noise Ratio (CD)100 dB (S: 500 mV)
Input Sensitivity (CD)500 mV / 47 k-ohms
FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono)3 μV (20.8 dBf)
FM Signal-to-Noise Ratio (Mono/Stereo)72 dB / 70 dB
Standby Power Consumption0.5 W
Dimensions (W x H x D)435 x 141 x 322 mm 17-1/8” x 5-1/2” x 12-5/8”
Weight6.7 kg 14.8 lbs..
