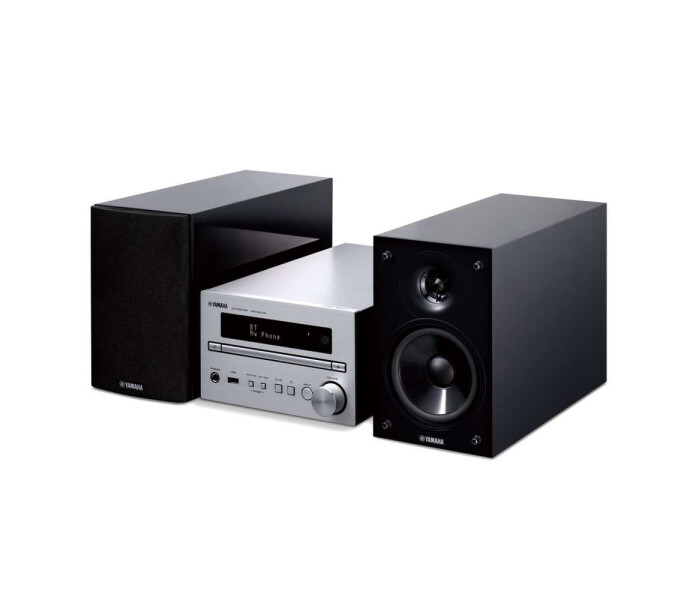

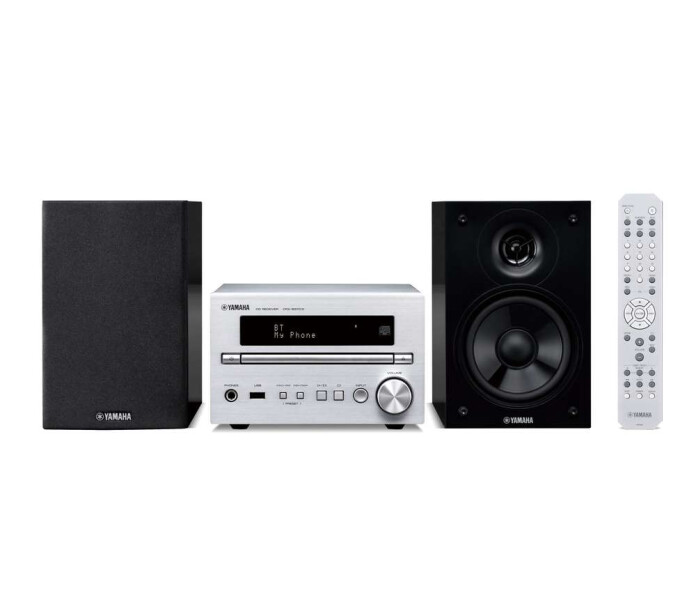

Yamaha MCR-B370D PianoCraft system (silver)
Description
An aluminium front panel is complemented perfectly with Piano Black Gloss speakers. Boasting VCCS to prevent unwanted speaker vibration delivers premium Yamaha sound while support for Bluetooth®, digital radio and an optical input provides access to a variety of music and audio sources.
Bluetooth wireless audio streaming
Hi-res audio (192 kHz / 24-bit FLAC / WAV) via USB
Authentic Hi-Fi design and tuning
Elegant Piano Black Gloss speakers
DAB / DAB+ / FM tuner (service availability may vary by region)
High-quality Burr-Brown DAC
Subwoofer pre-out
Specifications
Specifications
Center Unit
Bluetooth Version/Profile: Ver. 4.2 / A2DP, AVRCP [Audio Codec] SBC, AAC
Bluetooth Maximum Communication Range: 10 m / 32.8 ft. 10 in. (without interference)
Disc Type: CD, CD-R, CD-RW (Audio CD, MP3, WMA)
USB: Yes
File Format: MP3, WMA, AAC, WAV(*1), FLAC(*1), AIFF(*1), ALAC(*2) --- (*1) 192 kHz / 24-bit (*2) 48 kHz / 24-bit
Tuner: DAB / FM
Preset Memory: DAB x 30 / FM x 30
Headphone Jack: Yes (6.3 mm)

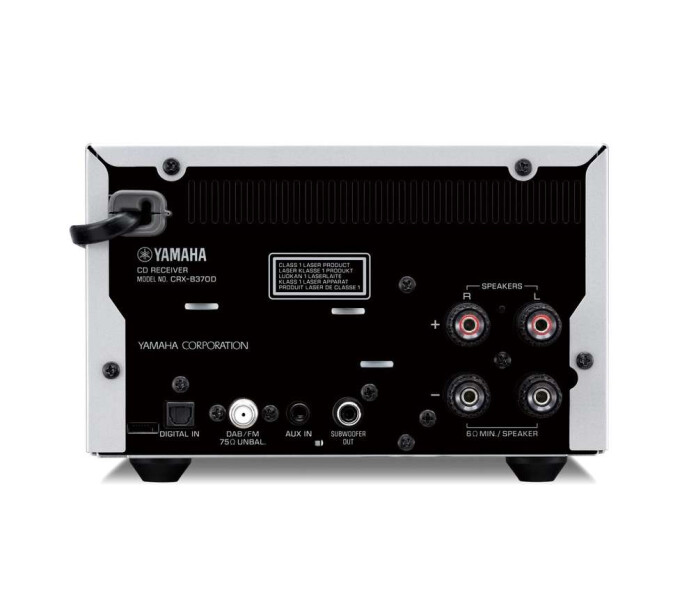

Analog Audio Input: Yes (3.5 mm STEREO mini Jack × 1)
Digital Audio Input: Optical: Yes
Subwoofer output: Yes
Total Harmonic Distortion(CD to Sp Out, 20 Hz-20 kHz): 0.05 %
Output Power/Channel (6 ohms, 1 kHz, 10% THD): 20 W + 20 W
Standby Power Consumption: 0.3 W (Eco standby) / 1.3 W (Bluetooth® standby on)
Dimensions (W x H x D): 180 x 118 x 322 mm
Weight: 2.7 kg
Speaker System
Woofer: 11 cm (4-3/8″) cone woofer
Tweeter: 2.5 cm (1″) dome tweeter
Input Power (Max/Nominal): 30 W (Nominal)
Frequency Response: 60 Hz-30 kHz
Sensitivity: 84 dB / 2.83 V / 1 m
Crossover Frequency: 6 kHz
Impedance: 6 ohms
Dimensions (W x H x D): 123 x 192 x 298 mm
Weight: 2.2 kg.
