SounDigital 800.1 EVO5 2 Ohm

EAN: 7898644527150
SD800.1-2 EVO5
1 Channel amplifier
Read more
Description
Specifications

Description

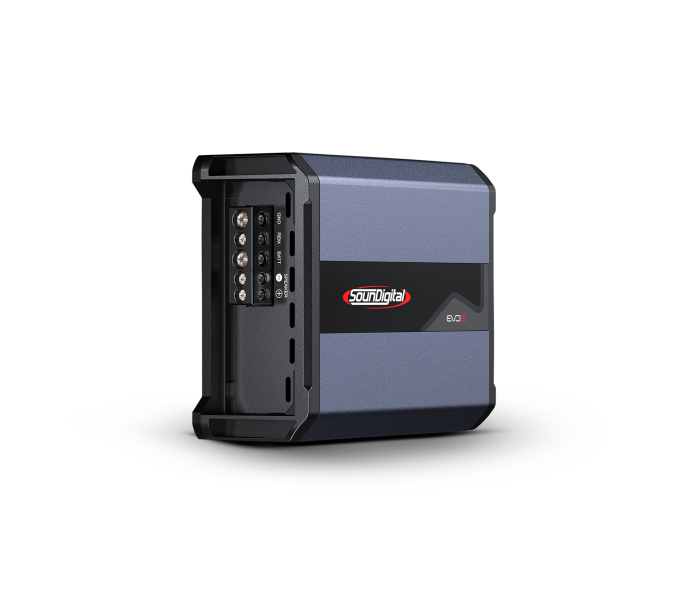

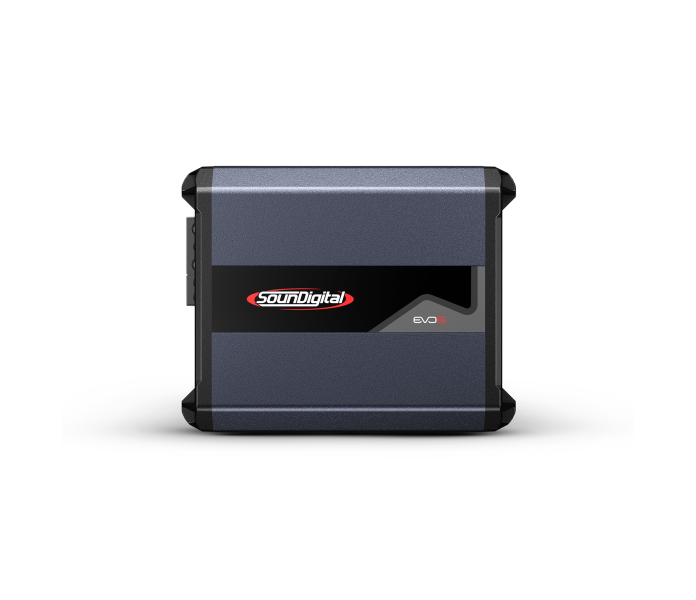

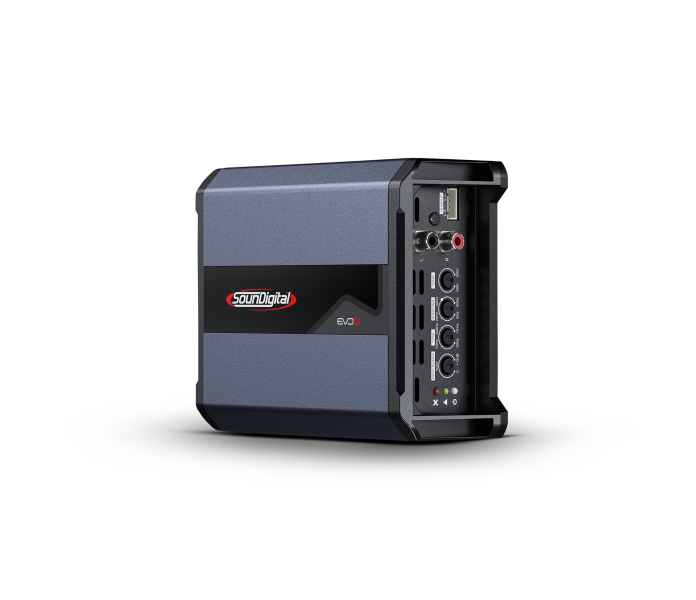

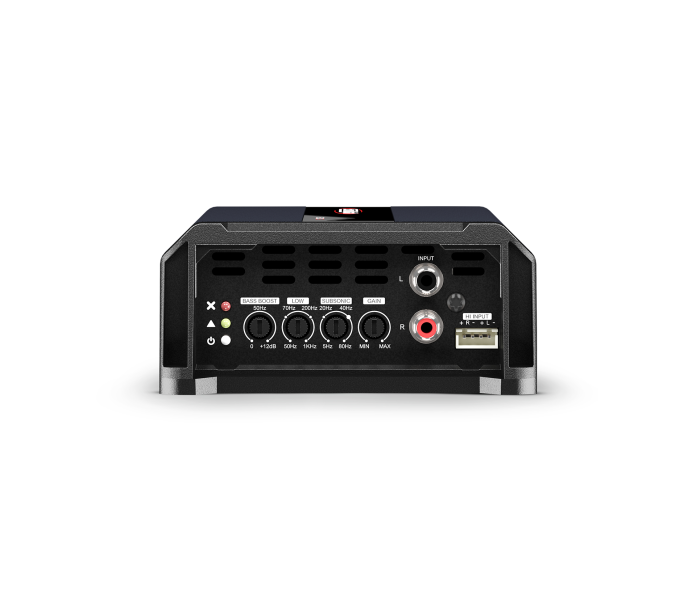

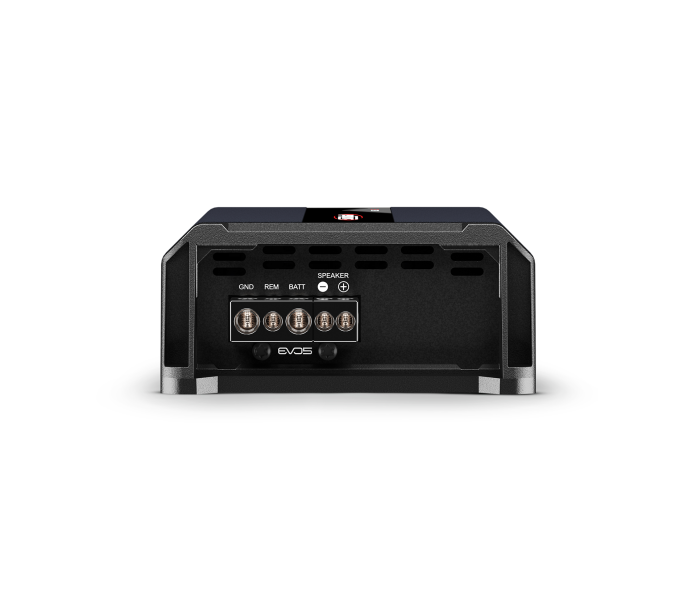

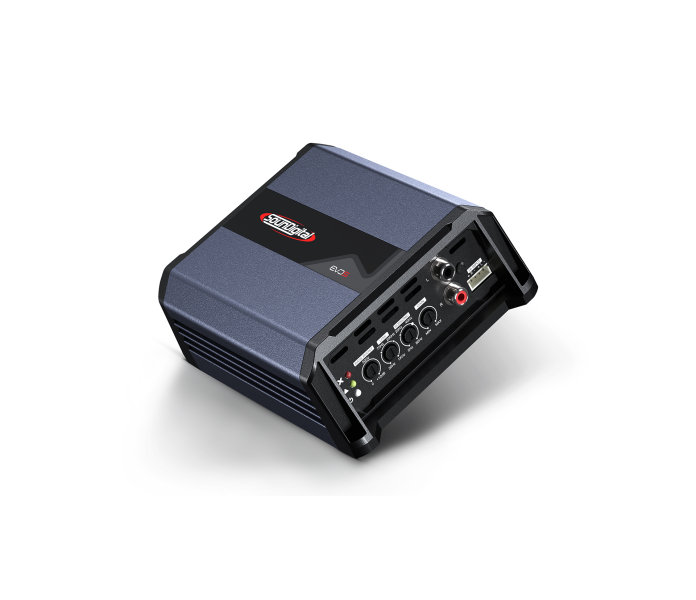

The 800.1 EVO 5 is a compact, modern amplifier that delivers 800W RMS of power distributed over 1 channel.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Specifications

Power @ 2Ω: 800W
Power @ 4Ω: 528W
Power @ 8Ω: 348W

Frequency Response:

10Hz ~ 20kHz

Subsonic Filter (HP 12dB/8º):

10Hz ~ 80Hz

Low Pass Filter (LP 12dB/8º):

50Hz ~ 20kHz

Operating Voltage:

8V ~ 16V

SNR:

2Ω: 96dB
4Ω: 97dB

Input Sensitivity (RCA): 0.2V ~ 4V

Input Sensitivity (High Level input): 1.5V ~ 15V

Current Draw (Music): 2Ω: 40A

Current Draw With Resistive Load (1kHz @ 12.6V): 2Ω: 81A

Total Efficiency: 2Ω: 79%

Damping Factor (@100Hz Rated Impedance): 200

Power Cable: 10mm² (7AWG)

Audio Output Cable: 2 x 2mm² (12 AWG)

Recommended Fuse (Music): 40A

Recommended Battery (Music): 60Ah

Width: 4.4 in / 11,3 cm

Length: 5.8 in / 14,8 cm

Height: 2 in / 5,1 cm

Weight: 1.54 lb / 0,7 Kg
