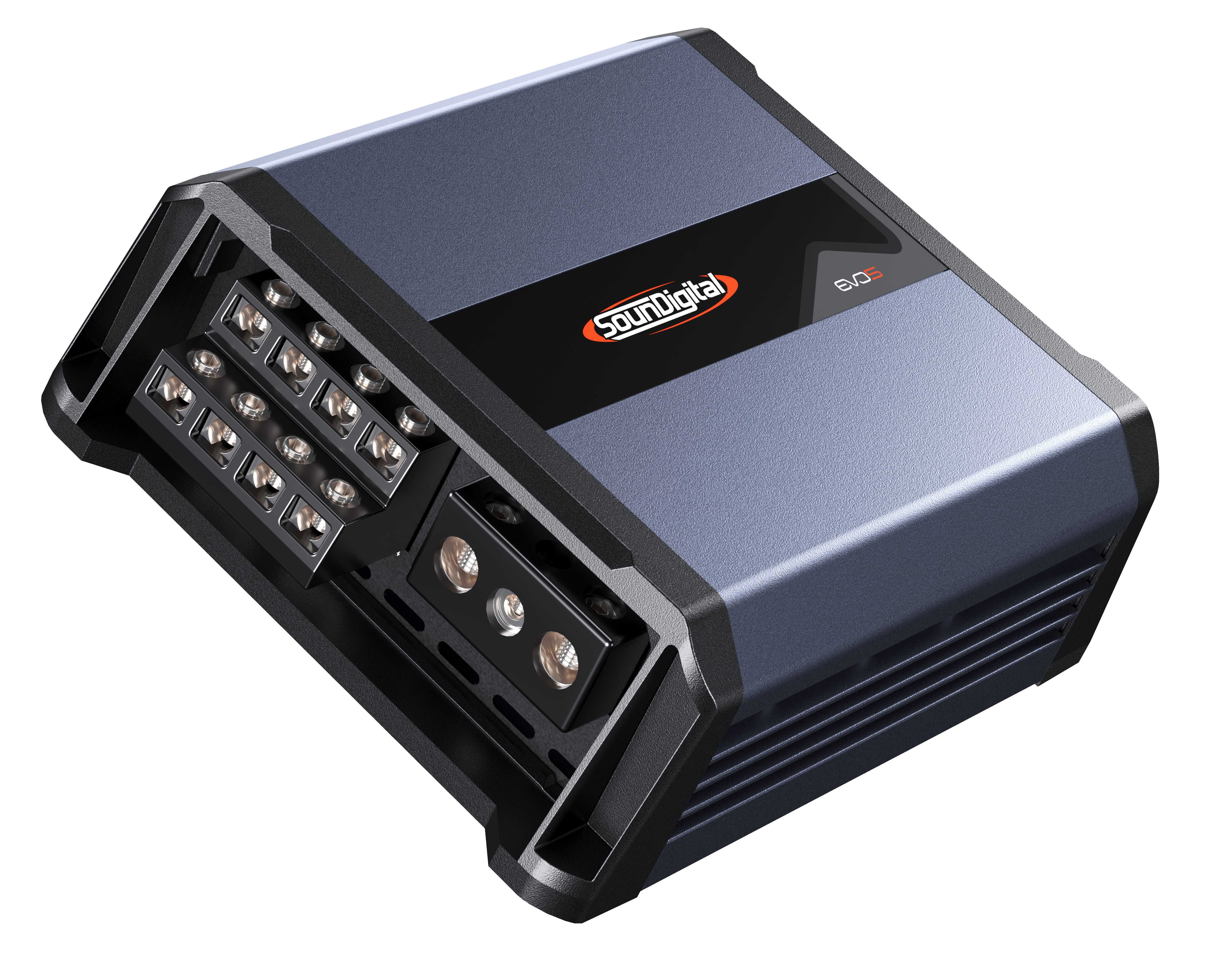

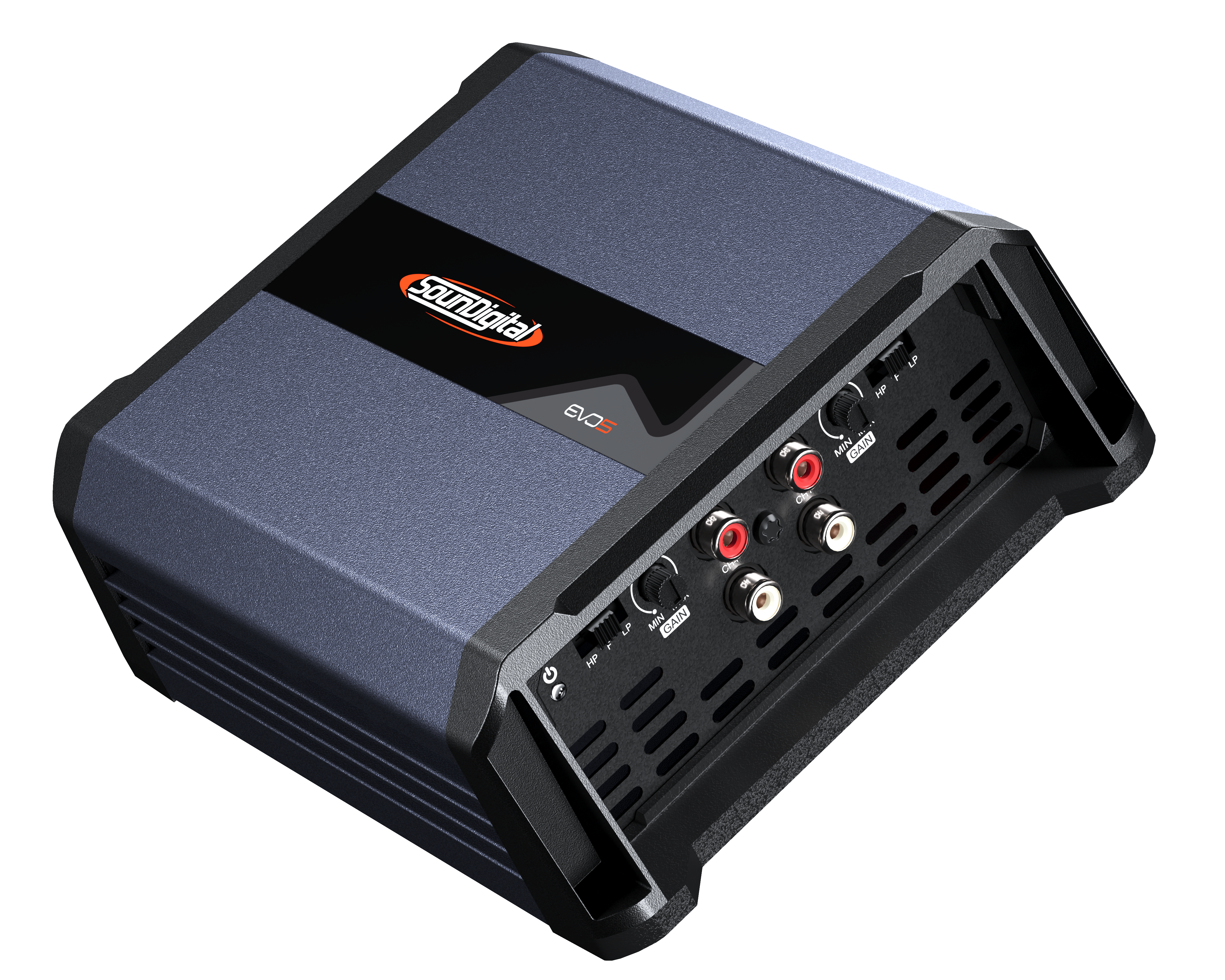

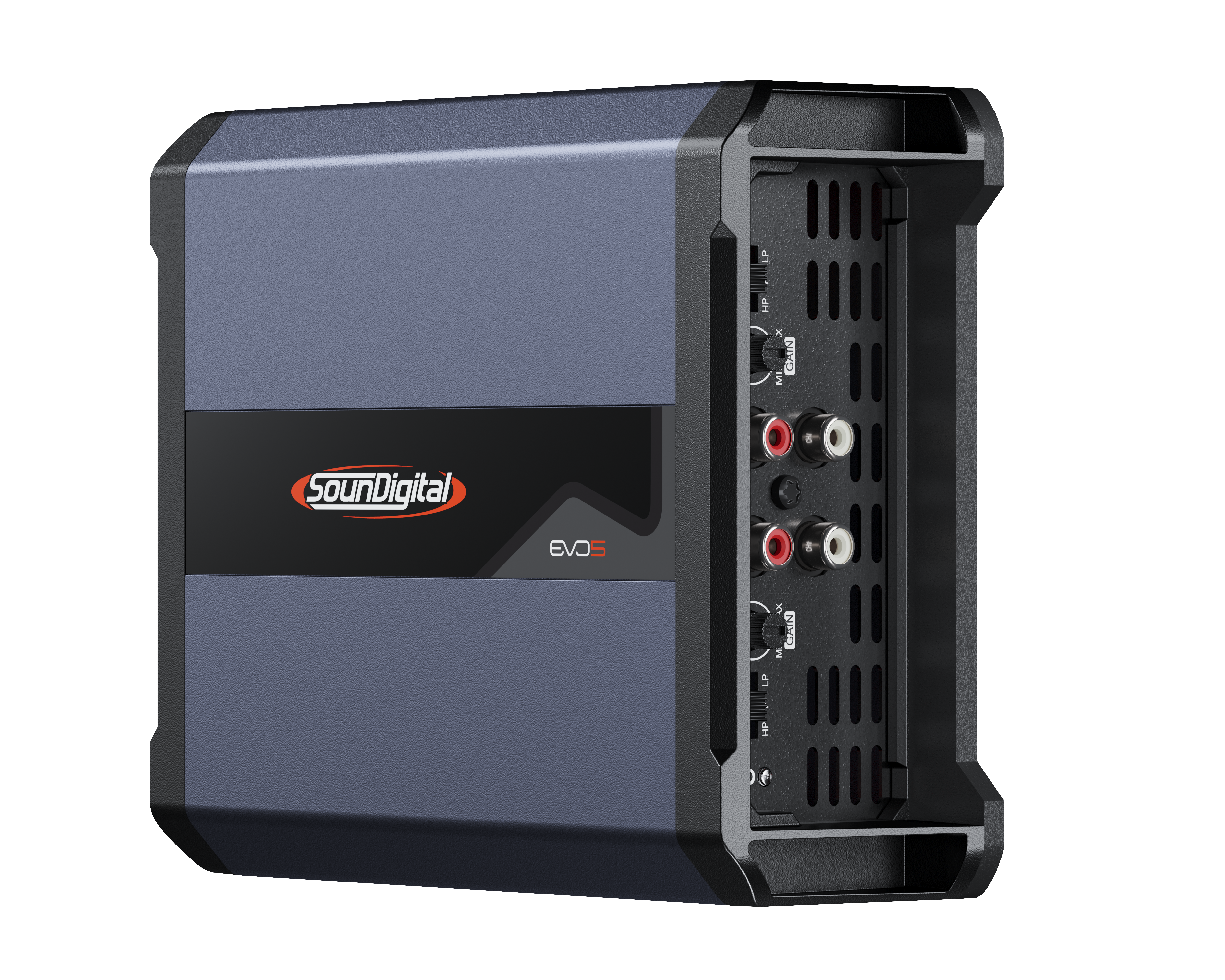

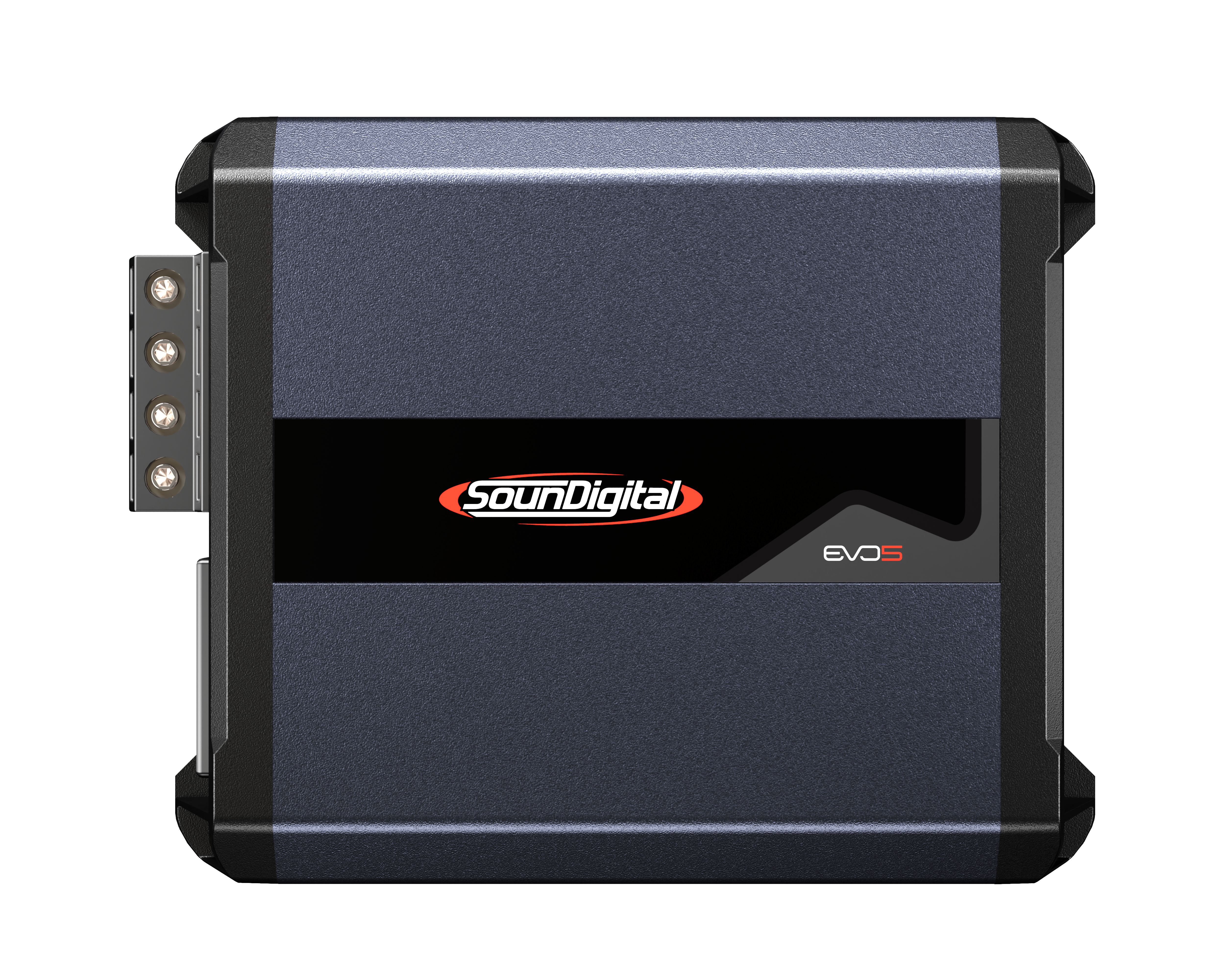

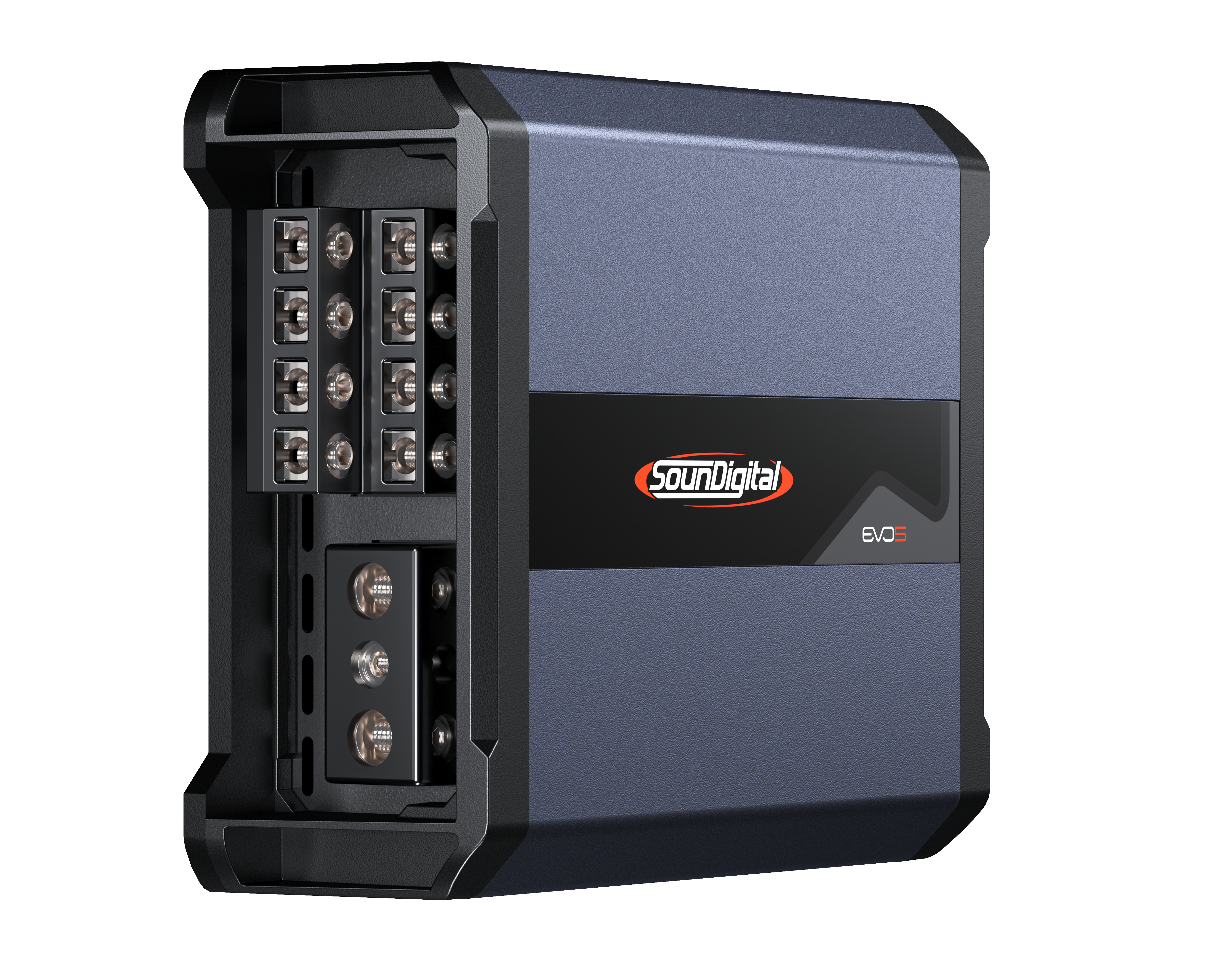

SounDigital 1200.4-2 EVO 5 - 4 Ohm
Description

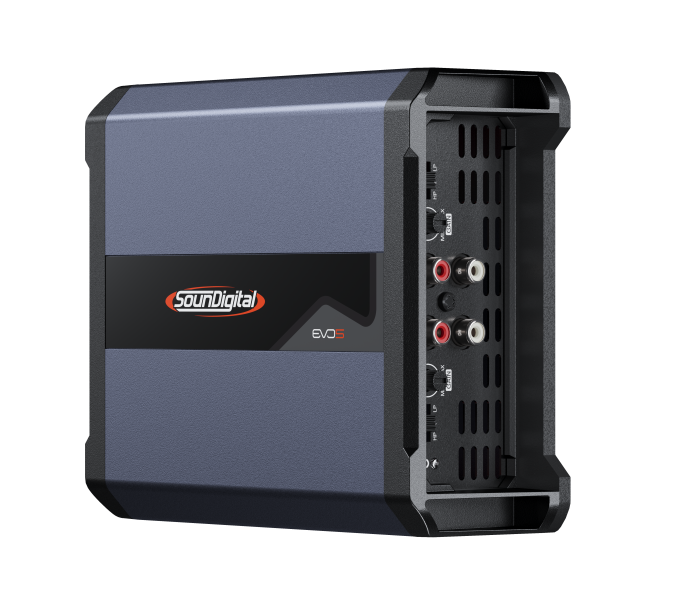

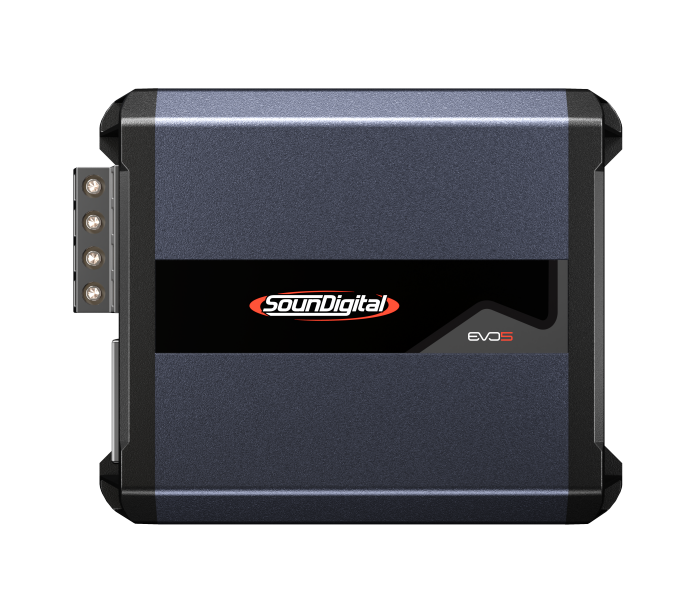

The 1200.4 EVO 5 is a compact, modern amplifier that delivers 1200W RMS of power distributed over 4 channels. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Specifications
Power @ 1Ω: N/A
Power @ 2Ω: 4 X 300 WRMS
Power @ 4Ω: 4 X 198 WRMS
Bridge Power @ 2Ω: N/A
Bridge Power @ 4Ω: 2 X 600W RMS
Frequency Response (-3dB):
5Hz ~ 22kHz
Low Pass Filter (12dB/oct):
80Hz
High Pass Filter (12dB/oct):
80Hz
Operating Voltage:
10V ~ 16V
SNR:
87dB
Input Sensitivity (RCA):
0.2V ~ 2V
Current Draw (music):
59A
Current Draw (max.):
118A
Total Efficiency:
81%
Damping Factor:
200

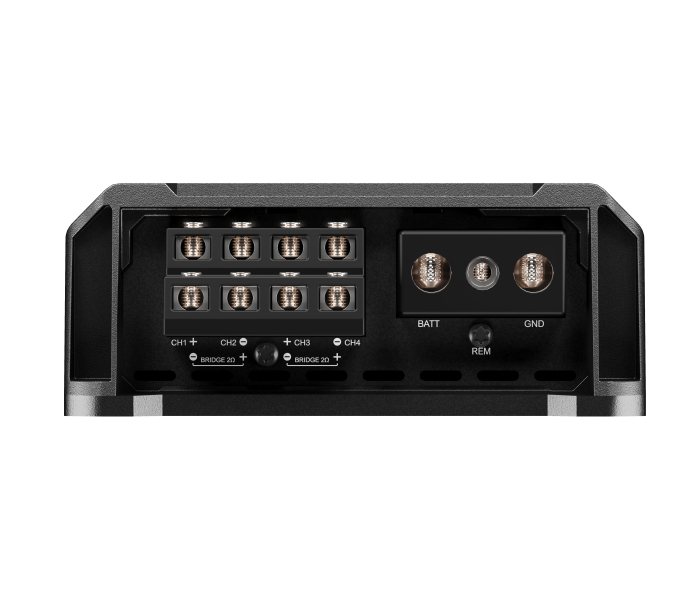

Power Cable:
16mm² (5 AWG)
Speaker Cable:
2 x 2mm² (14 AWG)
Recommended Fuse (music):
60A
Recommended Battery (minimum):
60Ah
Width:
6.7″ / 12.1 cm
Length:
5.4″ / 17 cm
Height:
2.2″ / 5.48 cm
Weight:
2.36 lb / 1,07 kg
